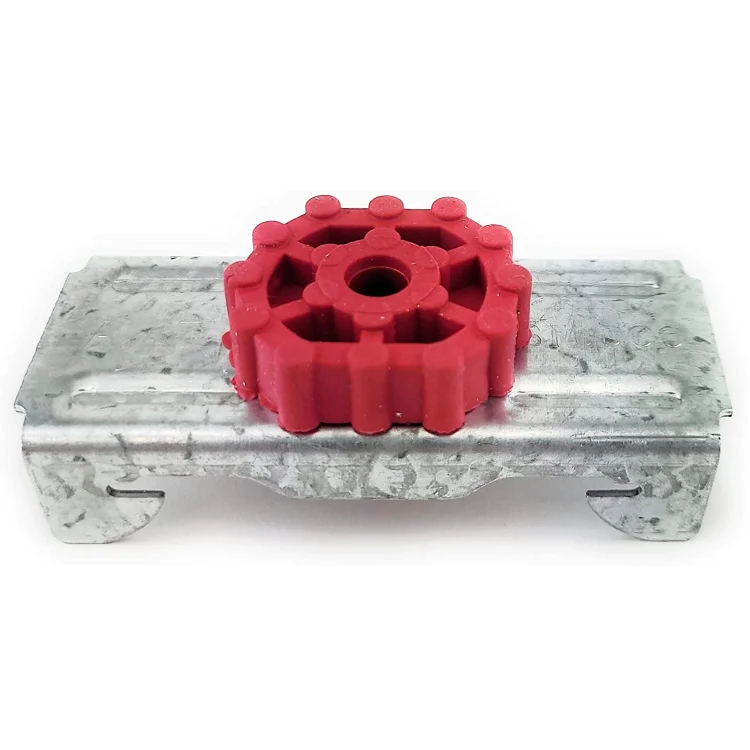

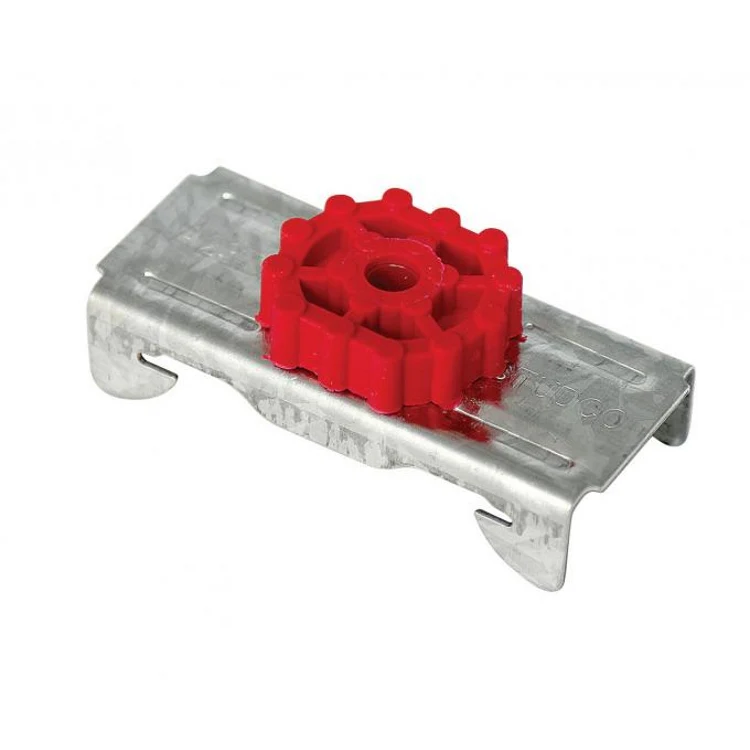

Resilmount A237R Furring Channel Sound Isolation Mount Clip- Box of 100

Box of 100

Resilmount A237R is a patented acoustic resilient sound bracket for furring channels. The A237R sound isolation clip reduces airborne and structure-born vibrations in walls and ceiling applications.

The unique sound cell design and the strong column design of the A237R clip eliminates structure borne vibrations transferring into the body of the sound isolation clip leaving a small fraction of contact surface area between the clip and the structure the clip is fastened to. This aids in absorbing and breaking up airborne sound at its transfer point. By locking to place on standard furring channels, A237R clips create a “floating wall or ceiling” that creates resiliency and breaks sound waves. Resilmount clips isolate wall and ceiling systems from the building structure resulting in premium acoustic control. Because of its unique natural absorbing characteristics Resilmount’s patented thermoplastic rubber outperforms standard rubber.

Resilmount A237R Furring Channel Sound Isolation Mount Clip Features:

Isolate wall and ceiling systems from building structure resulting in premium acoustic control
Engineered thermoplastic rubber outperforms standard rubber because of its sound absorbing characteristics.
Simple design- adaptable to limitless applications
- A237R can be used with any wood, steel, CMU or concrete application.
- A237R decouples gypsum board from the structure.
Consistent and reliable quality; manufactured under ISO9001 quality control system
Made with environmental responsibility- ISO 14001 EMS Certification
Cost effective solution to isolate airborne noise
UL approved in 109 wall and ceiling assemblies.
Equipped with pre attached fire washer for quick installation
A237R clips can be used with 7/8” and 1-1/2” furring channels
Provided with a 1/4” hole for a variety of fasteners.
1 hour fire-rated

A237R Clip Specifications:

Width: 1.375"
Height: 3.25"
Depth: 1.125"
Weight: 0.25 Lbs.
Acoustical Design Load: 36lbs

Installation:

A237R to be fastened to structure with a minimum #8 screw or masonry sleeve anchors.
Maximum spacing of clips on furring channel is 48”.
Spacing between furring channels should not exceed 24”.

FULL INSTALLATION INSTRUCTIONS HERE

Applications:

Multi-family housing
Mixed use commercial buildings
Studios
Home Theater

How Many To Order:

It is recommended by the manufacturer that A237R clips can be spaced up to 48" apart with spacing of up to 24" between the furring channels. If using this spacing, simply divide the square footage of the area by 5. In most cases you will need to compensate for being within 6" to walls/ceilings. Take the above number and multiply by 1.23 (123%). This should provide a good estimate to the number of A237R Resilmount clips needed.

For additional information regarding the number of A237R needed, see the charts in the Product Installation Guide.

View Product Datasheet

View Product Technical Manual

Resilmount

A237R

Resilmount

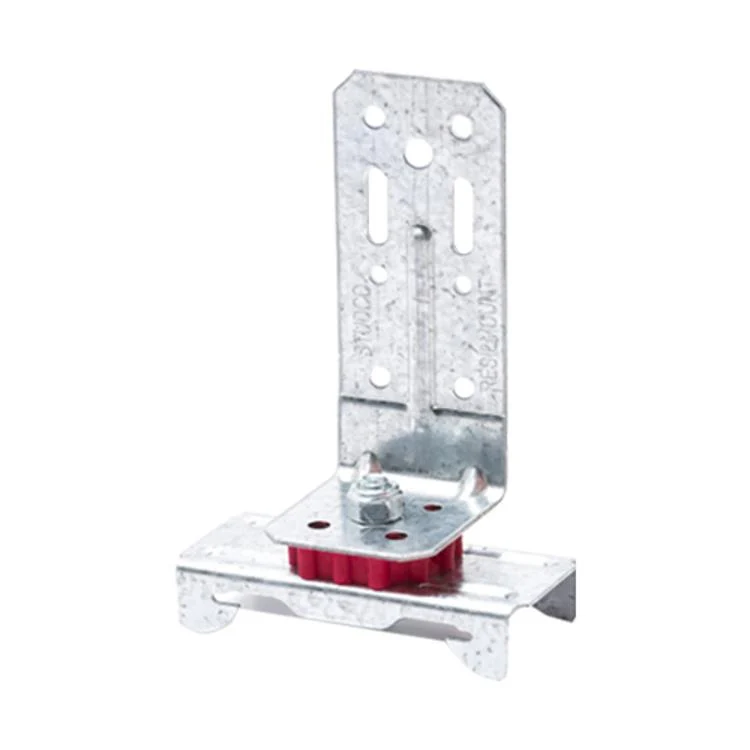

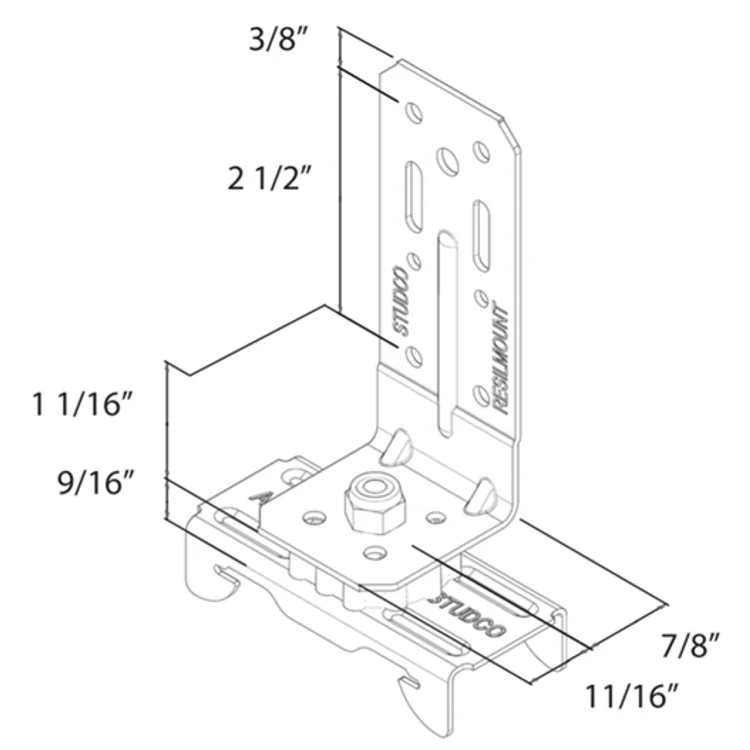

Resilmount A96R Right Angle Furring Channel to Purlin Resilient Clip

Resilmount A50R-2 4 in Black Resilient Isolation Hanger

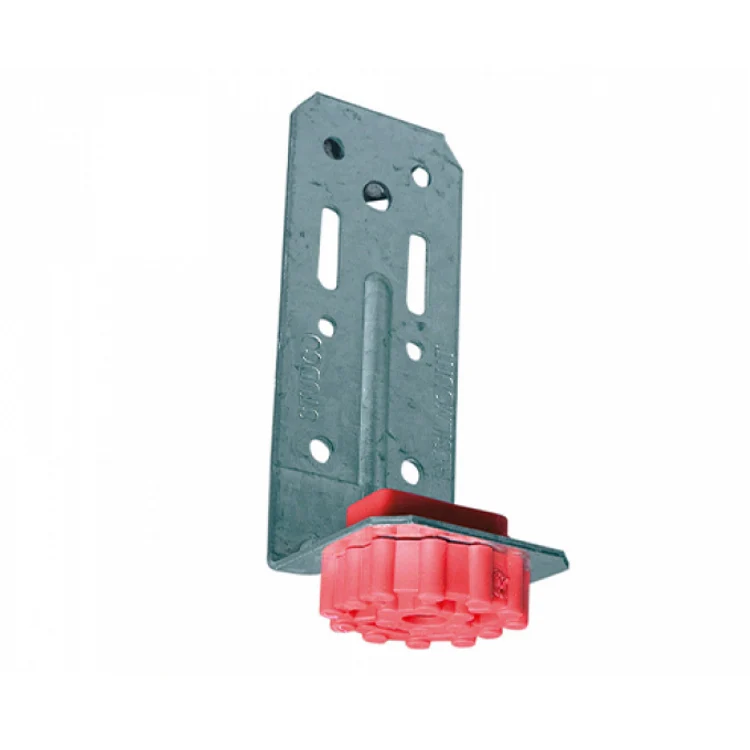

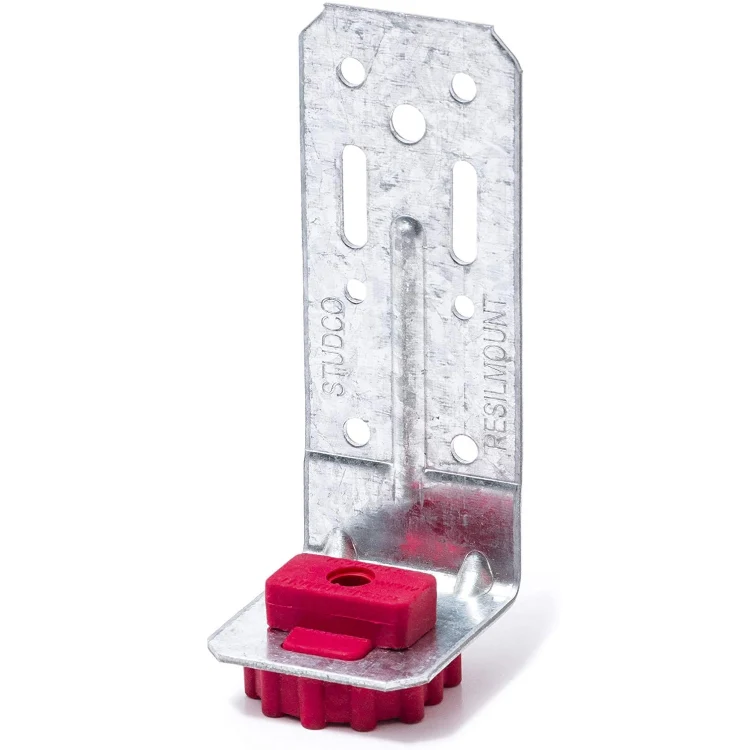

Resilmount A48R Resilient Right Angle Mount Bracket
